| Siglent SDS1000X+ Serie Optionen |  | Siglent Softwareoption zu ihrem Siglent SDS1000X+ Serie Oszilloskop
| Art.Nr.: | PD-01223 | | Hersteller: | Siglent | | Lieferzeit: |  am Lager 2-4 Tage* |
Dieser Produktvariant ist leider nicht vorhanden.
ab Siglent SDS1000X+ Software Empfehlung inkl. MwSt (19%)
|
zusätzliche Optionen zum Siglent SDS1000X+ Serie Oszilloskop: (nur für SDS1102X+ und SDS1202X+ - Fragen offen? - bitte fragen Sie uns)
| Optionsname: |
Beschreibung: |
Preis: (inkl 19% MwSt.) |
| Siglent SDS-1000X-DC |
optional Decoding accessories for IIC , SPI , UART/RS232 , CAN |
188,00 € |
Siglent 16 Kanal Logik Tastkopfset SPL1016 & Siglent SDS-1000X-16LA |
optional 16 - Kanal Logik Tastkopfset mit 500MSA Abtastrate für das SDS1102X+ oder SDS1202X+ & Logik Option für das SDS1102X+ oder SDS1202X+ |

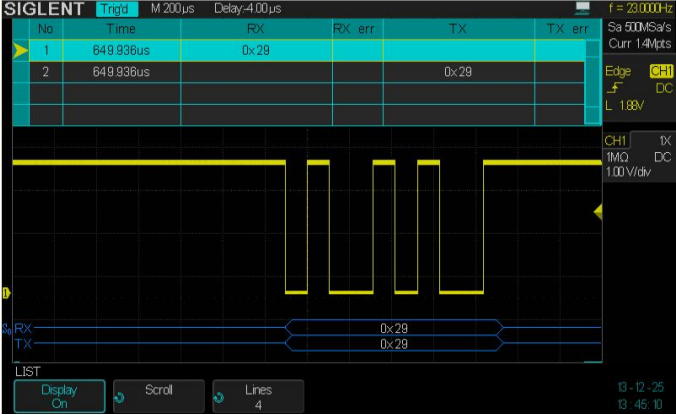

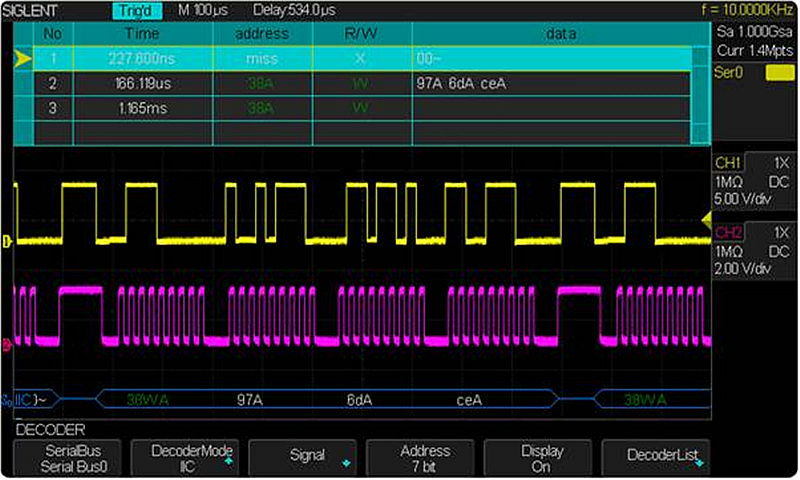

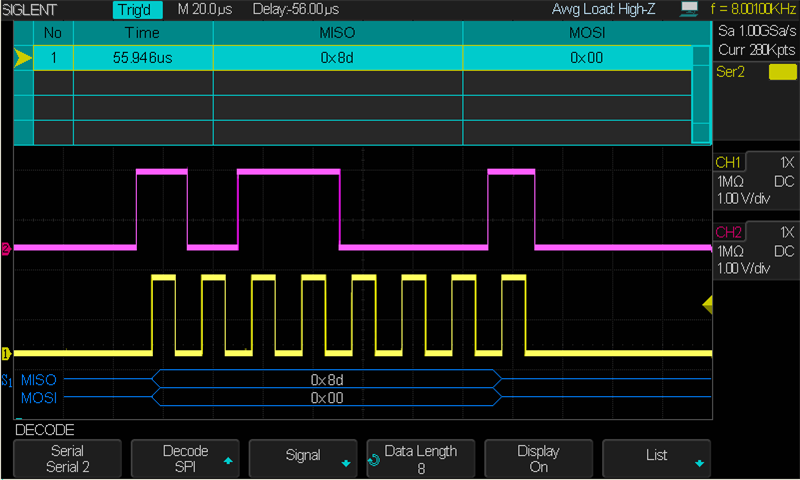

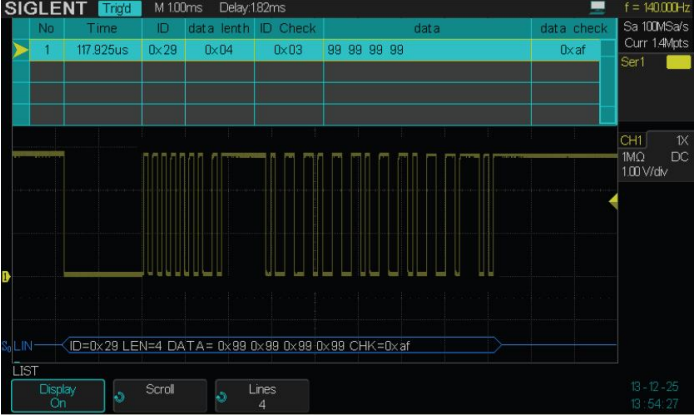

360,00 € | 1. Siglent SDS-1000x-DC optional accessories, Signal Decoding for IIC(I2C), SPI, UART/RS232, CAN, LIN signal IIC, I2C Signal Decordierung SPI Signal Decordierung RS232 Signal Decordierung

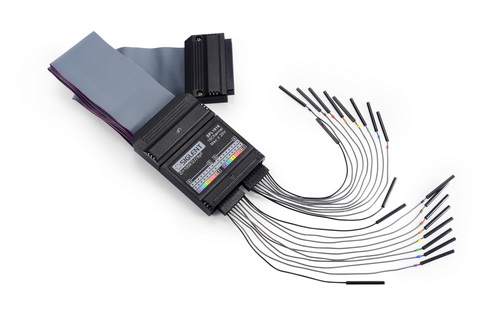

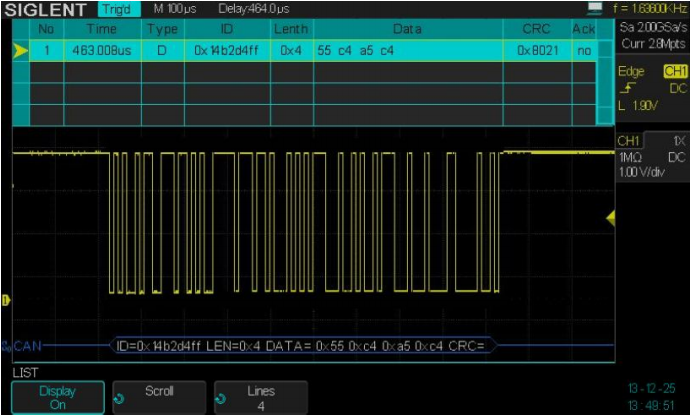

CAN Signal Decordierung 2. Siglent (16 Kanal Logik Tastkopfset) SPL1016 & Siglent SDS-1000X-16LA (SDS1000X+ Serien Option) Parameter Siglent SPL1016 ( 16 Kanal Logik Tastkopfset)
| Input Channels |
16 Digital Channels |
| Input Channels Threshold Groupings |
Pod 2: D15 - D8, Pod 1: D7 - D0 |
| Threshold Selections |
TTL(1.5 V),CMOS(2.5 V),3.3 V_LVCMOS (1.65 V), 2.5 V_LVCMOS (1.25 V) |
| Maximum Input Voltage |
± 20 V Peak |
| Threshold Accuracy |
± (3% of threshold setting + 150 mV) |
| Input Dynamic Range |
± 10 V |
| Minimum Input Voltage Swing |
800 mVpp |
| Input Impedance (Flying Leads) |
100 kO|| 8 pF |
| Maximum Input Frequency |
60 MHz |
| Sample Rate |
500 MS/sa |
| Minimum Detectable Pulse Width |
8.3 ns |
| Channel-to-Channel Skew |
± (1 digital sample interval) |
| User defined threshold range |
± 3 V in 10 mV steps |
Download: Siglent SPL1016 16 channel logic probe datasheet
| |
|
