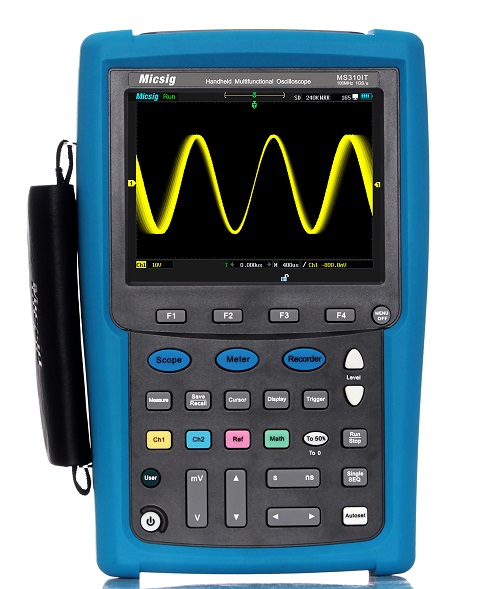

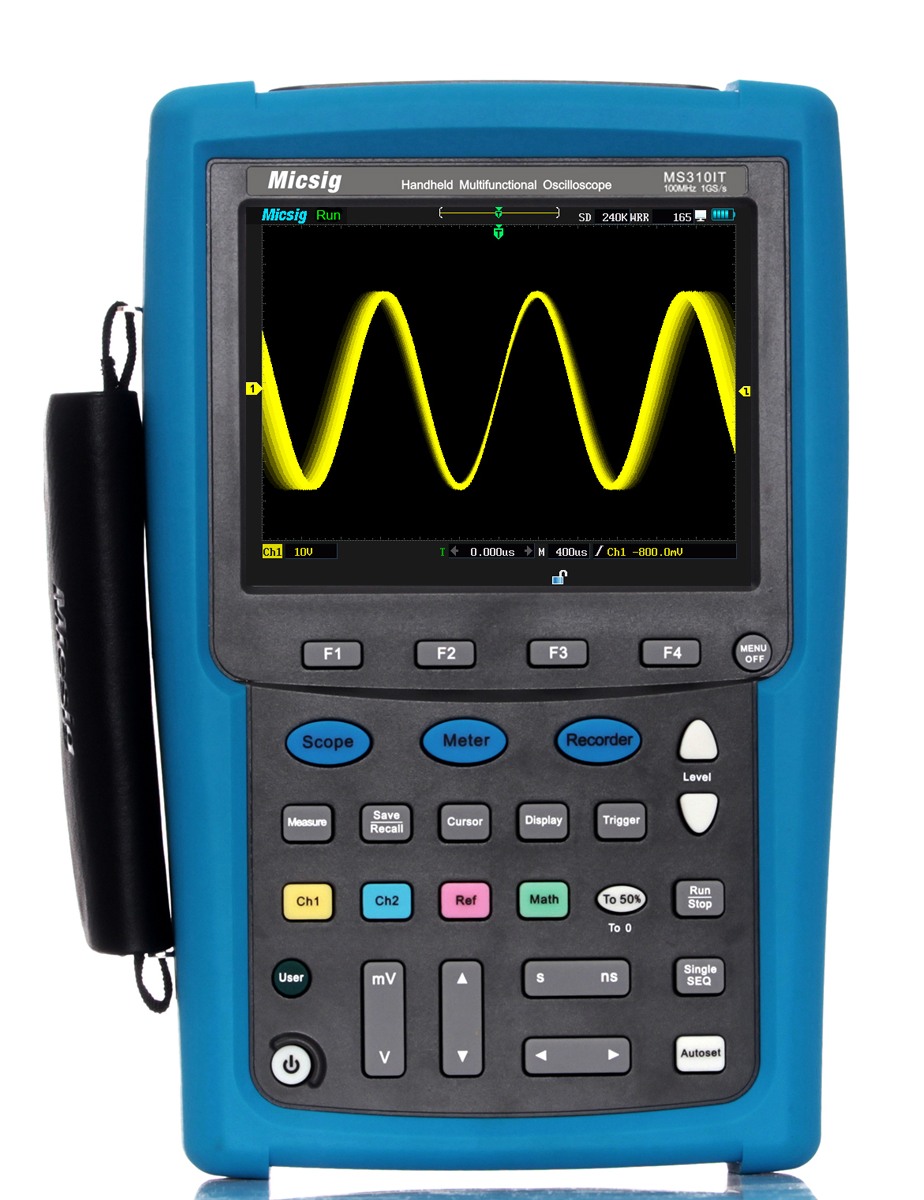

Modell /
Model |
MS310IT |
MS320IT |
|
Bandbreite / Bandwidth (BW) |
100MHz |
200MHz |
|
Anstiegszeit / Rise time |
=3.5ns |
=1.75ns |
|
Abtastrate Real time sampling rate |
single channel :1GSa/s,dual-channels:500MSa/s
|
|
Speichertiefe / Memory depth |
single channel :240Kpts,dual-channels:120Kpts
|
|
Isolierte Kanäle / Isolated channel |
2 voneinander isolierte Kanäle / two fully isolated channels |
|

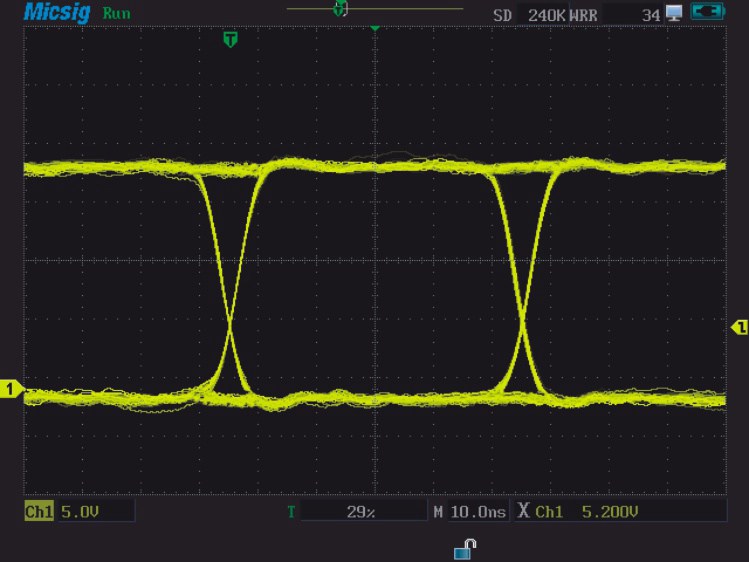

max Signal Wiederholrate / Max waveform capture rate |
- (can be upgraded to 50K wfms/s) |
| Serial bus decode |
Optional ( SW Option zukaufbar) |
DSO VERTIKALSYSTEM / Vertical system |
| Kanäle / Channels |
2 oscilloscope channels,1 multimeter channel |
|
zuschaltbare Bandbreitenbegrenzung / switchable Limited bandwidth |
20MHz |
|
Kanalkopplung / Channel Coupling modes |
DC, AC, GND |
|
DSO Kanalimpedanz / DSO Channels Inputs impedance |
parallel 1MOhm±1% with 15pF±3pF |
|
Eingangsempfindlichkeit / Vertical sensitivity |
5mV/div~50V/div |
|
Vertikale Auflösung / Vertical resolution |
8bits |
|
max Eingangsspannung / Max voltage input |
max. 300V CAT III |
| Floating voltage from CHs to GND |
600V CAT III |
|
DC Verstärkungsgenauigkeit / DC vertical gain accuracy |
5mV/div~50V/div, 2.0% |
Horizontal system |
|
Zeitbasis / Timebase |
4ns/div~10s/div |
|
Timebase delay range |
-12divs~50s |
|
Zeitbasis Genauigkeit / Timebase accuracy |
20ppm |
|
Erfassungarten / Sample mode |
normal, average, pk-pk, envelope |
|
Dynamic record |
- (can be upgraded) |
|
Signalspeicher / Store waveform |
4 ref waveforms (can be upgraded to flash disk storage) |
Trigger system |
|

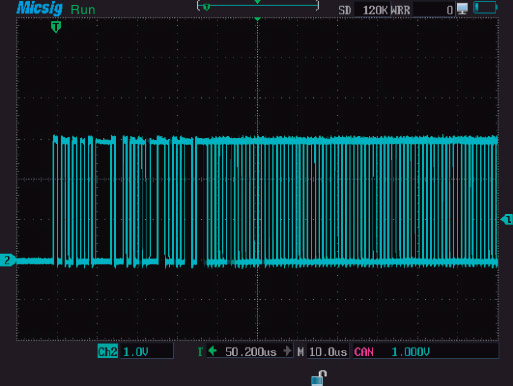

Triggerarten / Trigger types |

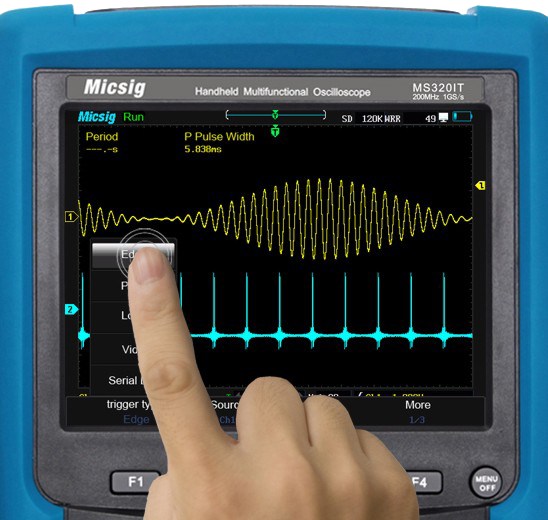

edge, pulse, logic, serial bus(UART,LIN,CAN,SPI,I2C) |
|
Triggerkopplung / Trigger coupling |
DC ,AC , High-frequency suppression, Low-frequency suppression, Noise suppression |
|
Trigger Modi / Trigger modes |
auto, normal, single |
|
Triggerquelle / Trigger source |
CH1,CH2 |
| Inhibition range |
200ns~10s |
Measurement |
|

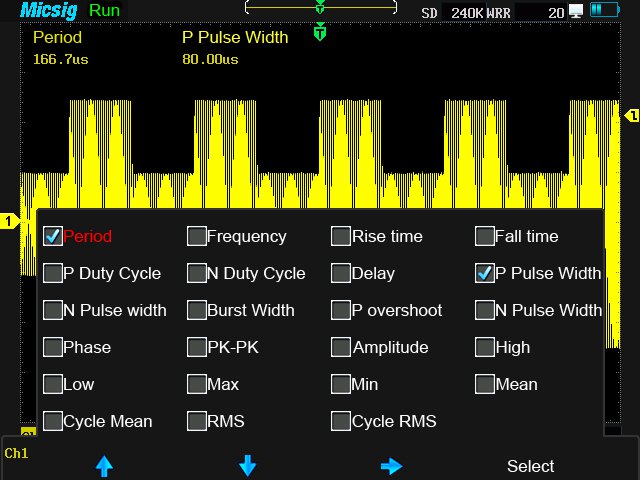

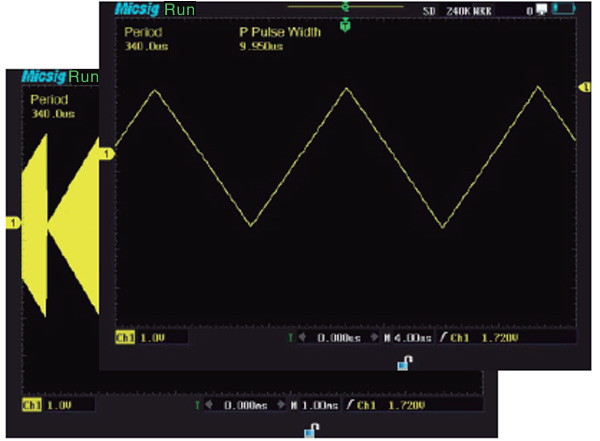

Automatische Messfunktionen / Automatic measurements |
31 types |
| Cursor types |

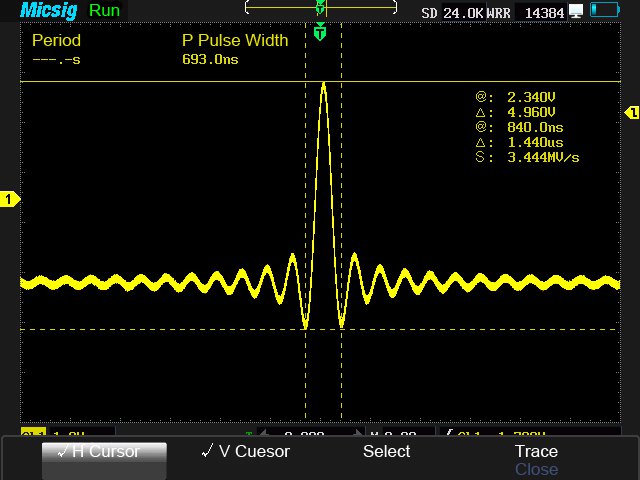

horizontal cursor, vertical cursor, cross cursor |

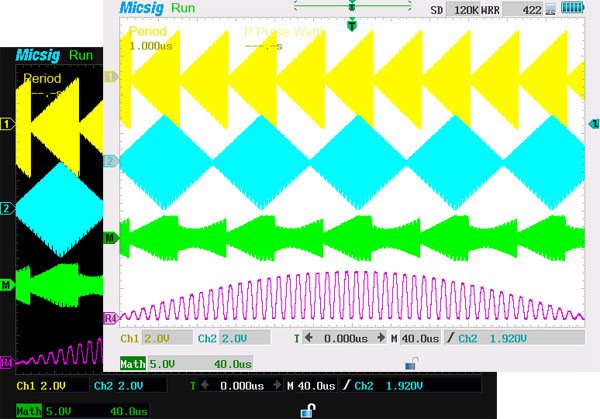

Math |
| Operator |
+ , - , * , / |
|
FFT Fensterfunktionen / FFT window settings |
Rectangular, Hamming, Blackman-Harris, Hanning |
Display Eigenschaften / Display Features |
| Screen |

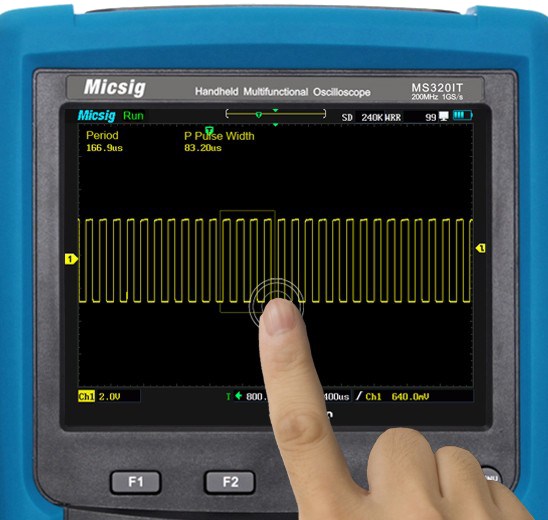

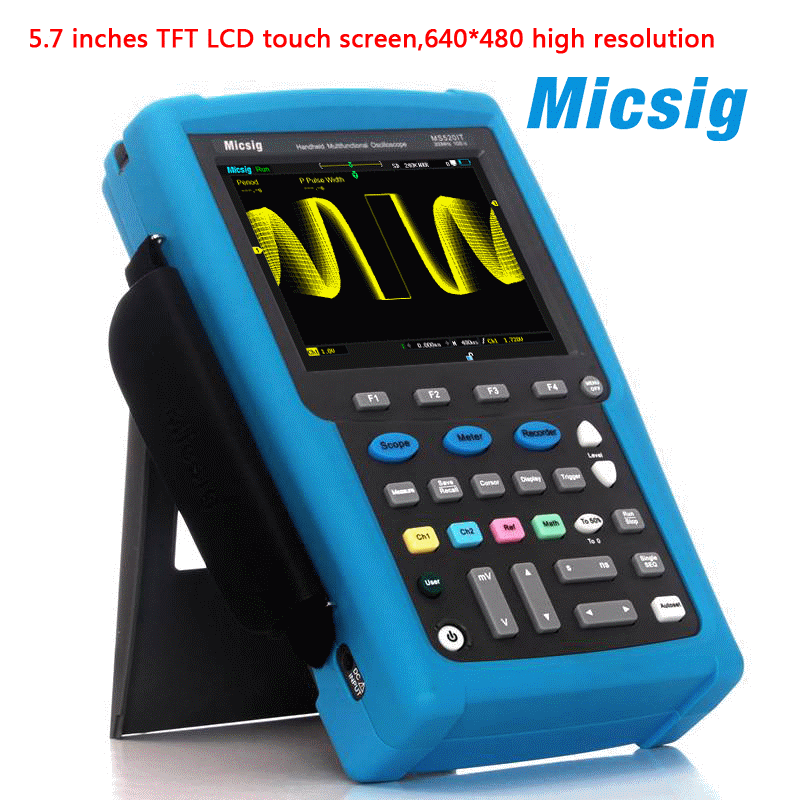

5.7 inch TFT LCD touch screen |
| Auflösung / Resolution |
640*480 |
| 3D waveform display |
not support |
| Grid of waveform display zone |
horizontal 12 divs *vertical 8 divs |
| Form |
YT form (can be upgraded to XY form) |

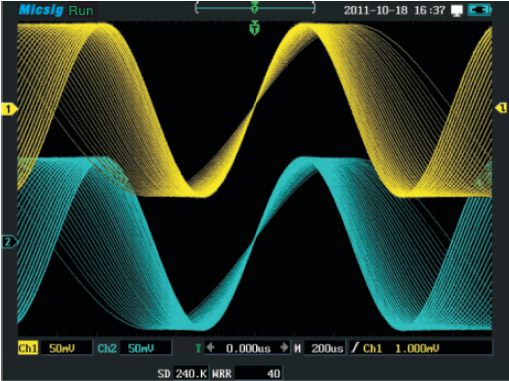

| Persist |
auto, 100ms~10s or 8 |
I/O Port I/O Schnittstellen |
| Mini USB2.0 |
connect to PC |
| USB2.0 |
connect to flash disk |
| WIFI |
not support |

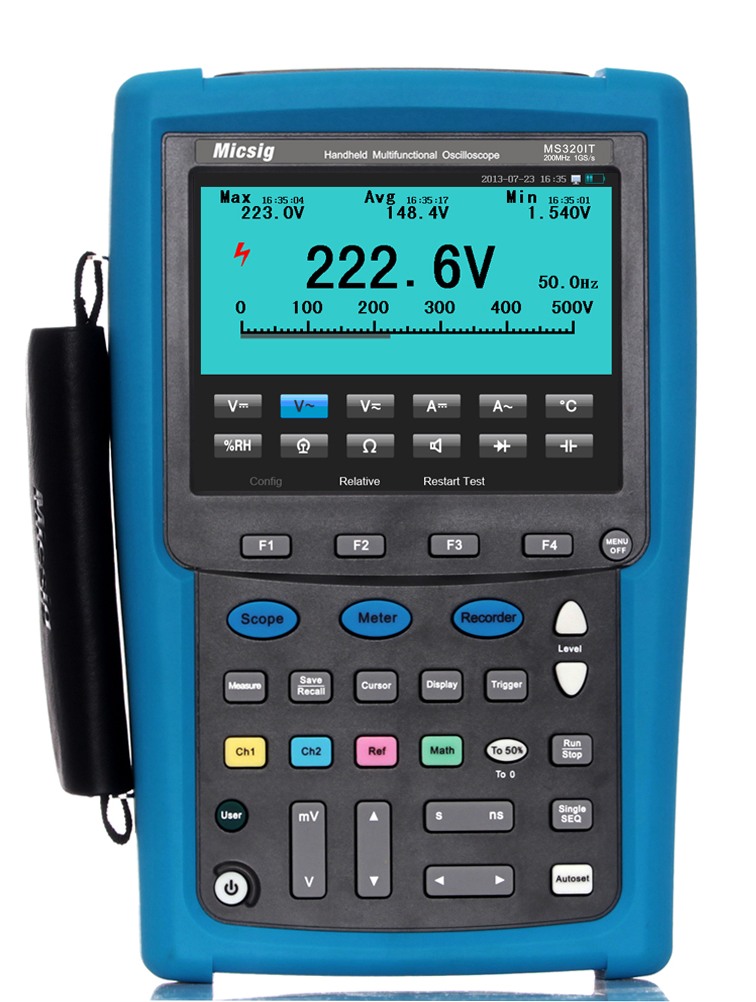

Multimeter |
| Measurement types |

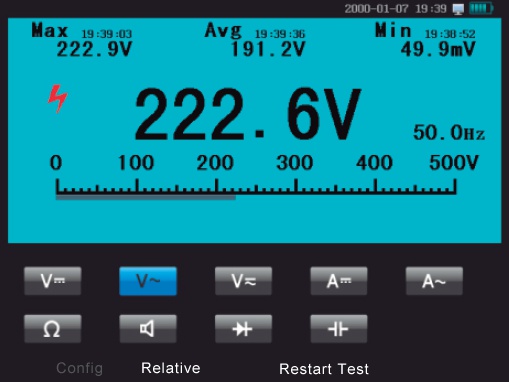

10 physical measurements ,such as voltage, current, resistance, capacitance, diode , etc |
| Measurement accuracy |
4 bits |
| Measurement display |
max, average, min, values with time stamp,relative measurement |
Datenaufzeichnung / Data Logger |
|
Aufzeichnungsfunktion / Logger content |

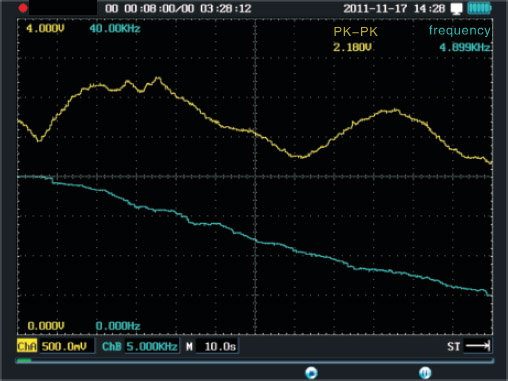

Multimetermessung / multimeter measurements, Oszilloskop Signalform / oscilloscope waveform, Oszilloskop Messart / oscilloscope measurements |
|
Aufzeichnungsschrittweite / Logger timebase |
multimeter measurements,10s/div ~ 20min/div; oscilloscope measurements 10s/div ~ 20min/div
oscilloscope waveform 100us/div ~ 2min/div |
|
Aufzeichnungslänge / Logger time length |
max 17 days (can be upgraded to flash disk record) |
Stromversorgung / Power |
|
Netzadapter / Power adapter |
input:100-240VAC,50-60Hz,2A; output:12VDC,5A |
| Battery |
capacity:7.4V/6000mAh, work time:4~5 hours |
Umweltbedingung für den Betrieb / Work environment |
|
Temperaturbereich / Temperature |
-20°C ~ +50°C |
|
rel Luftfeuchtigkeit / Humidity |
< 85% RH |
Dimension |
|
Abmessungen / Size |
254mm*160mm*60mm |
|
Gewicht / Weight |
Gerät mit Batterie, main unit: 1380g (no battery), Zubehör accessories(standard): 691g, Batterie / battery(standard): 276g. |
