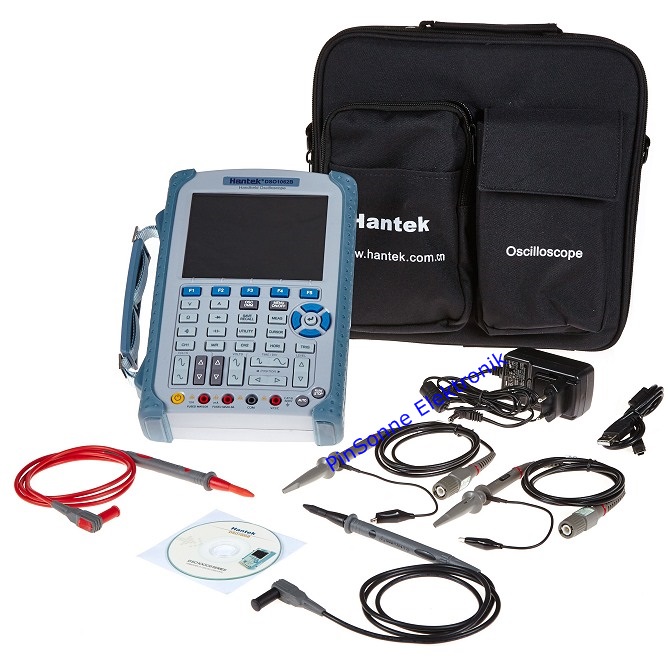

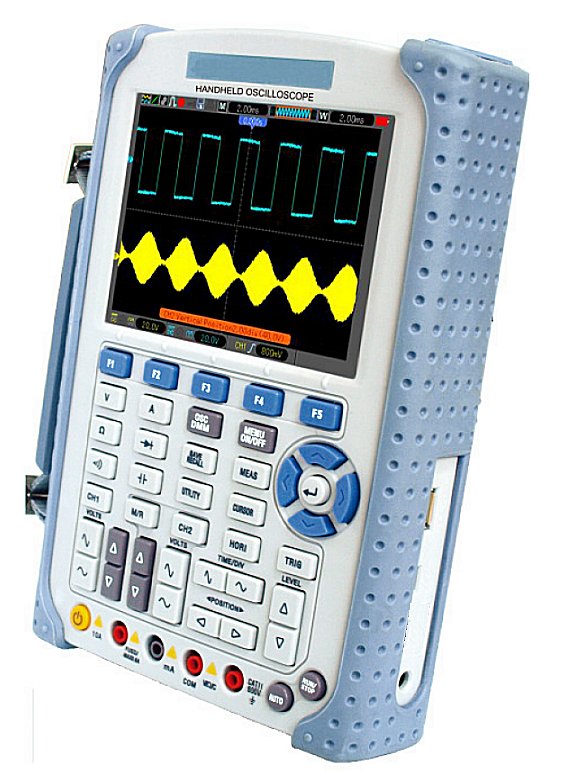

100 MHz Scopemeter HANTEK DSO-1102B 2CH

Model

DSO1202B

DSO1102B

DSO1062B

Oscilloscope mode

Bandbreite / Bandwidth

200MHz

100MHz

60MHz

Echtzeitabtastrate /

Real-time Sample Rate

1GSa/s

Equivalente Abtastrate /

Equivalent Sample Rate

25GSa/s

Speichertiefe /

Record Length(Sample Points)

1 Kanalbetrieb 1Mpoints; 2Kanalbetrieb 2x512kpoints

Single-channel: Maximum 1M; Dual-channel:Maximum 512k

hor. Zeitbasis /

SEC/DIV Range

2nS/div-2000S/div (in a 2, 4, 8 sequence)

Delay Time Accuracy

500ps

Vertical

A/D Converter (Wandler)

8-bit resolution

vertikale Empfindlichkeit

VOLTS/DIV Range

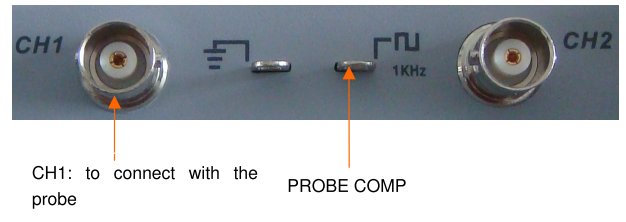

2mV/div~5V/div at input BNC

Positionsbereich /

Position Range

±50V(5V/div),±40V(2V/div~500mV/div),2V(200mV/div~50mV/div)±400mV(20mV/div~2mV/div)

Rise Time at BNC

=1.7ns

=3.5ns

=5.8ns

DC Genauigkeit /

DC Gain Accuracy

±4% for Sample or Average acquisition mode, 5mV/div to 2mV/div
±3% for Sample or Average acquisition mode, 5V/div to 10mV/div

Trigger

Triggerempfindlichkeit /

Trigger Sensitivity
(Edge Trigger Type)

DC: CH1/CH2(Typical) 1div from DC to 10MHz;1.5div from 10MHz to Full
AC: Attenuates signals below 10Hz

HF Reject: Attenuates signals above 80kHz

LF Reject: Attenuates signals below 150kHz

Noise Reject: Reduces trigger sensitivity

Triggereinstellbereich

Trigger Level Range

CH1,CH2: ±8 divisions from center of screen

Trigger Level Accuracy
typical (Accuracy is for signals having rise and fall times =20ns)

CH1,CH2: ±(0.3div×V/div) (within ±4 divisions from center of screen)

Holdoff Range

100ns-10s

Trigger  Arten / Trigger Type

Edge

Trigger on the rising or falling edge

Pulse Width

Trigger (when >,<,=,?) on positive or negative pulses
Pulse Width Range: 20ns-10s

Video

Trigger on an NTSC, PAL, or SECAM standard video signal
Line Range: 1-525 (NTSC), 1-625 (PAL/SECAM)

Slope

Trigger (when >,<,=,?) on a positive or negative slope
Set Time: 20ns–10s

Overtime

from the rising or falling edge
Set Time: 20-10s

Alternate

Internal trigger on edge, pulse width, video or slope

Messarten / Measurement

Kursorenmessung /

Cursors

Manual: The difference between voltage cursors ?V; the difference between time cursors ?T; 1/?T calculated by Hz.
Tracing: The voltage and time at a waveform point

autom. Messfunktionen

Automatic

Pk-Pk, Max, Min, Mean, RMS, Cyc RMS, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width and more

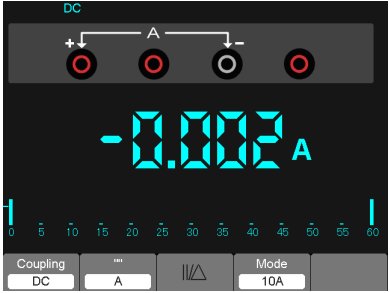

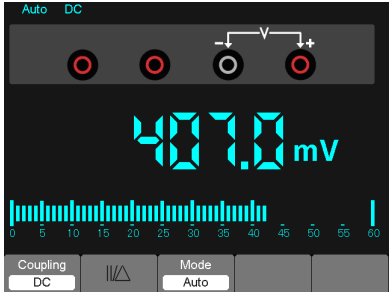

Multimeterbetrieb / Meter Mode

Max.Resolution

6,000 Counts  / 6000 Auflösestellen

DMM Testing Modes

Voltage, Current, Resistance, Capacitance,Diode & Continuity

Max. Input Voltage

AC: 600V, DC: 800V

Max. Input  Current

AC: 10A, DC: 10A

DMM Eingangsimpedanz

Input Impedance

10 MOhm

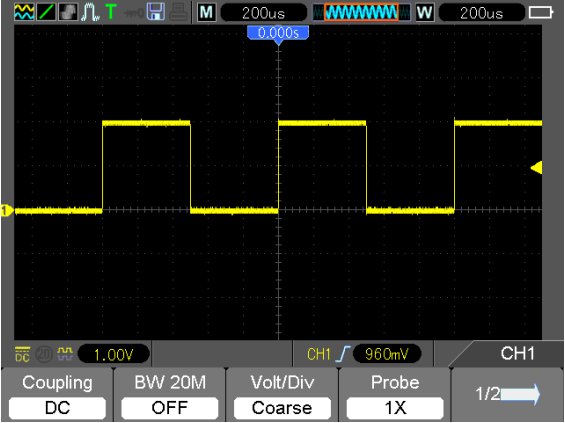

Display

Type

Right angle 5.6 16-digit color LCD , 3 zu 4

Resolution

640*480 dots

Contrast

16 gears, with the progress bar to show adjustment

Interface

USB host and USB slave, Lan Optional

Power Supply

Spannung / Voltage

 DC Input:12--17VDC, 1500mA

Mechanical

Abmessungen / Size

245 x 163 x 52 (mm)

Gewicht / Weight

1.3KG (exclusive of packing and accessories)
